Technolube is a Richmond BC based company, specializing in providing  reliable and user friendly automatic lubrication
units with the grease fill you need, and user-fillable oil dispensers.  Our Automatic Lubricators are also available with
stock  greases ( EP0, EP1 and EP2 types based on current demand)  with same day shipment if ordered by noon.
Some food grade greases or specialty lubricant greases  may take a little longer,  but we will do our best to provide you
with our lubricators containing the grease specified  for your equipment  in the shortest possible time, ready to go.

Electronically controlled  lubrication has many advantages over the manual grease gun. Your lubricant is delivered in
the precise amounts needed as in  the schedule you set up when installing the unit.   You enjoy better performance and
longer machinery life (up to 48% longer according to studies), while reducing  safety concerns and manpower costs.

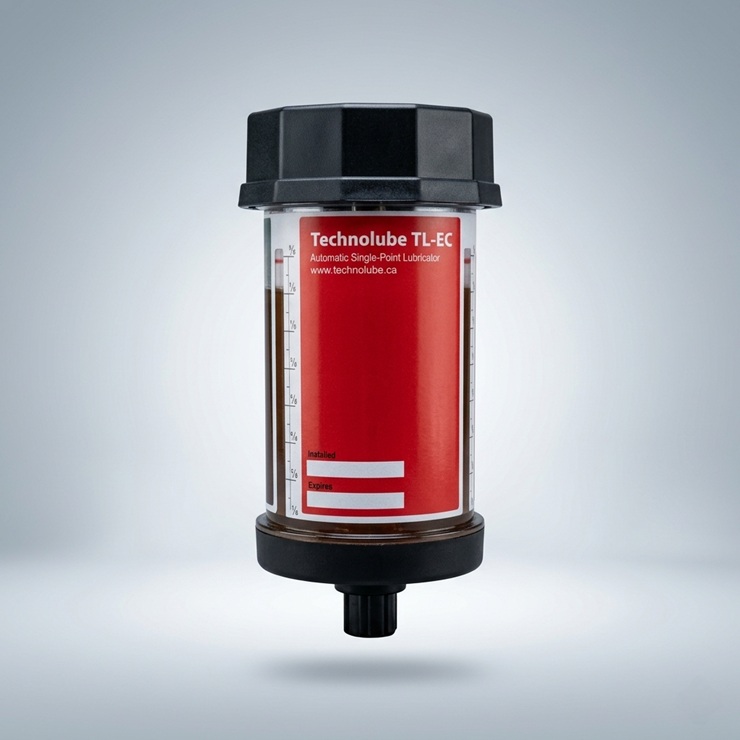

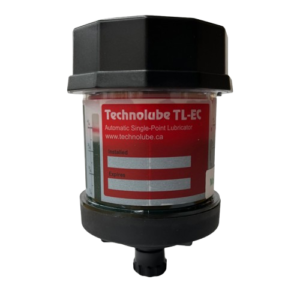

The single point  Econo series (TL-EC1, EC2  and EC3) has a simple control system in a unit which is fully recyclable
when empty.  Now used in many industries large and small as a reliable alternative to more expensive installations
or manual lubrication.








   Single point -TL-D2  250cc
            and TL-D1 125cc
Refillable, multi-point
TL-M1 125cc, TL-M2 250cc,
TL-M3 500cc

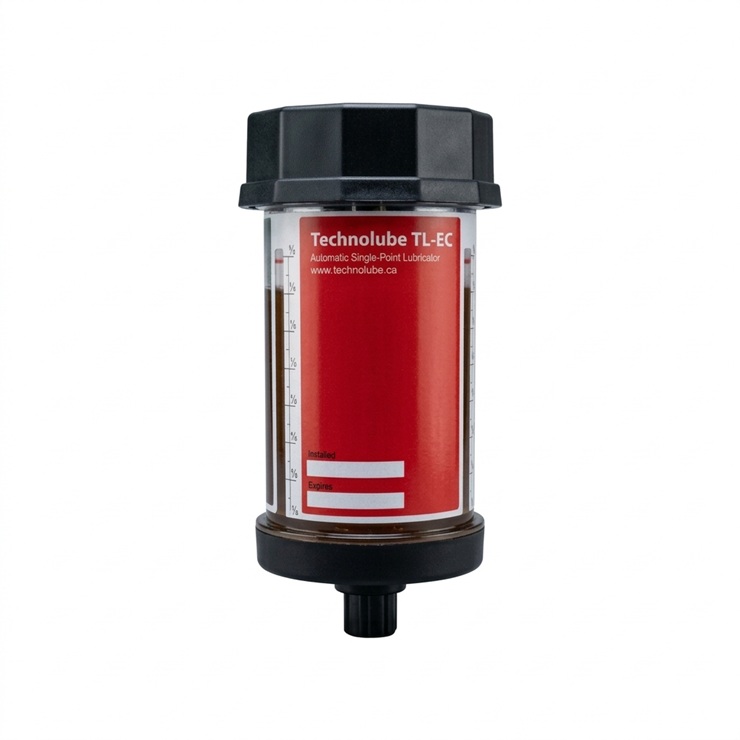

TL-EC1 60cc, TL-EC2 120cc
        and TL-EC3 240cc.

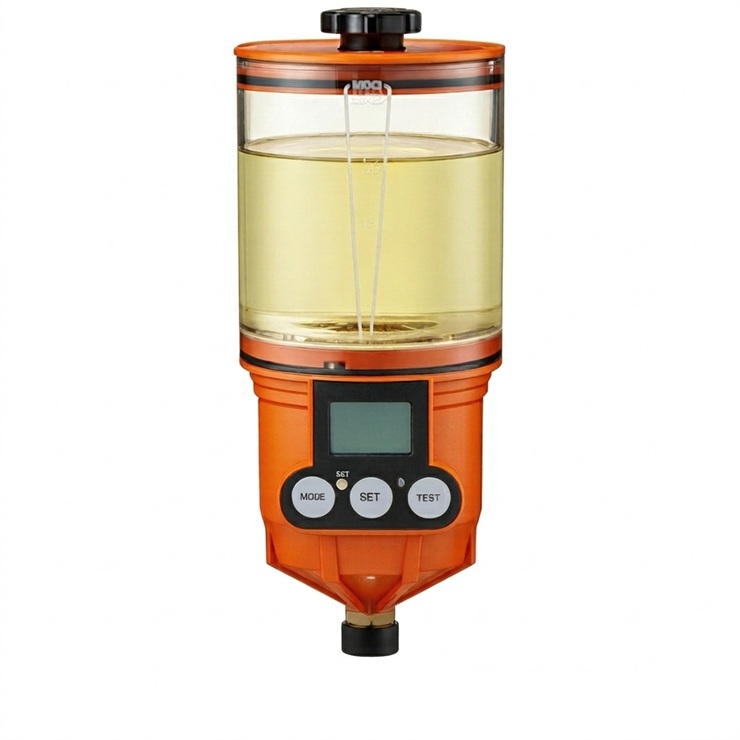

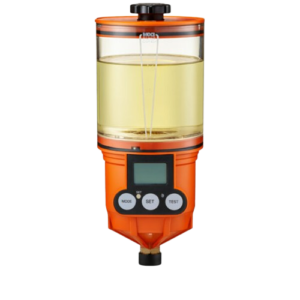

The refillable OIL  unit TL-OL500 holds up to 500cc of oil and can supply from one to four bearings.

This is also available as TL-OLS500, machine synchronized AND externally powered.  A  battery
is needed to maintain the  internal  processing while on standby, but need not be replaced with each fill for up to five years.





Most of the necessary brackets, fittings and tubings are stocked for shipment with your  lubricators, as kits or individual parts.

For more information, or the name of your closest distributor, please call or email us.

Equipment
synchronized
external powered
MS dck here to add text.
Equipment synchronized
external powered
Oil dispenser 500cc

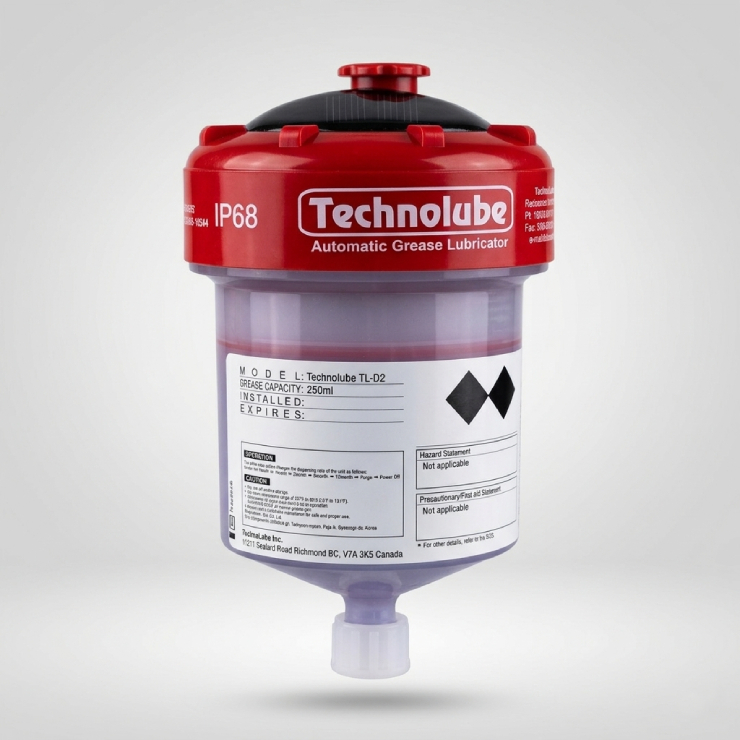

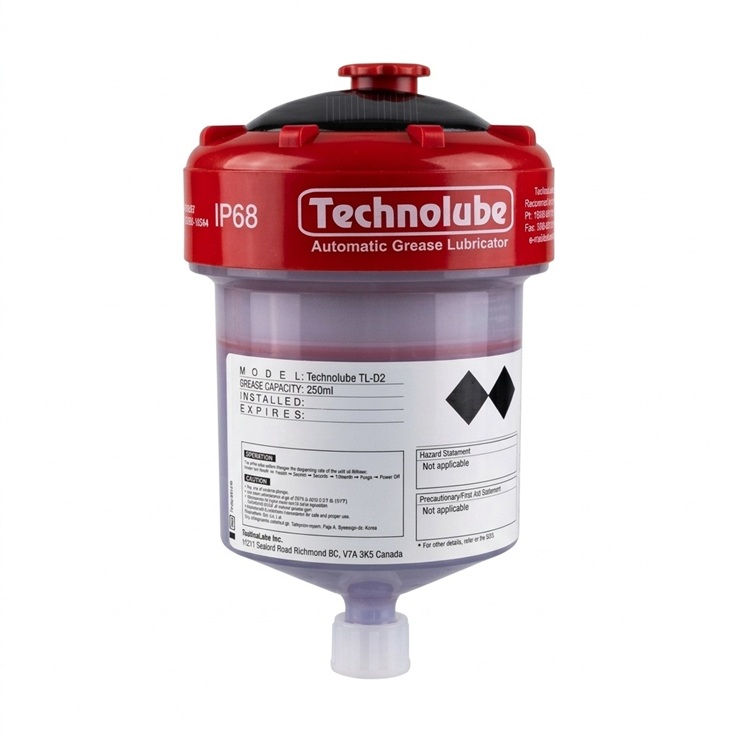

The single point digital display lubricator  (TL-D1 and D2can be mounted directly on to the bearing or on a bracket
up to 3 ft. away using an  extension  tube and fittings.  It cuts down on time spent by personnel in servicing the bearing
under hazardous conditions and can be located outdoors . Weather-proof within the temperature range of -20C - +50C.

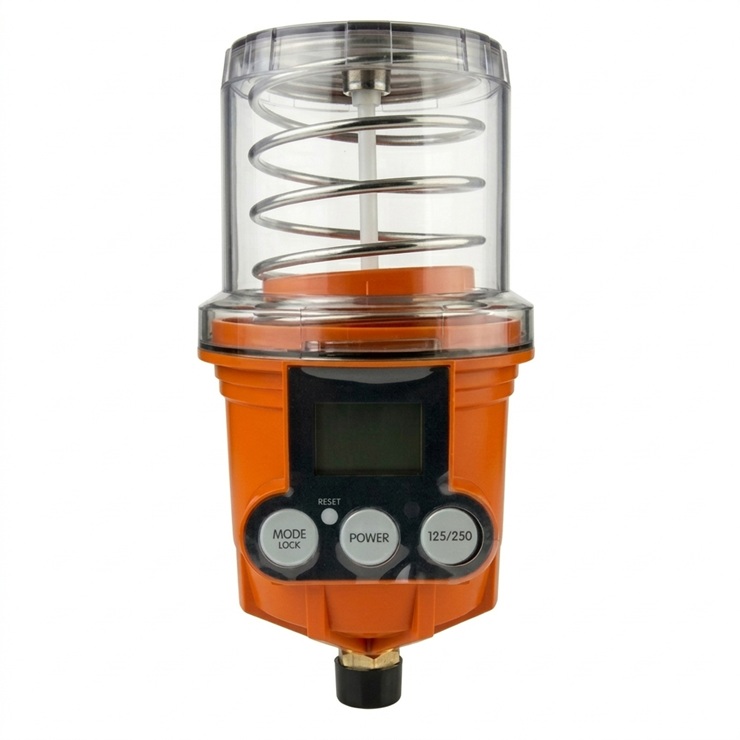

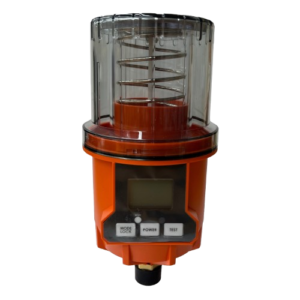

The refillable electromechanical unit (TL-M1, M2 and M3) services a single bearing point, or up to eight, each at
a maximum distance of 20 ft. from the unit, indoors or outdoors.  The grease pouch refills and batteries are
recyclable.  With optional lithium batteries the units can handle lo-temp to -40C. Over the lifetime of the mechanical
unit it is an  economical option.

The refillable electromechanica1 MS series, 125cc, 250cc and 500cc, is available with a  machine synchronized
option, externally powered.  The lubricator automatically goes to standby when the equipment is switched off, and
starts up again with your equipment.  A battery is needed only to maintain the internal processing while on standby,
and  will last for up to five years before needing replacement.

Another lo-temp capable unit is the refillable  MSB series, machine synchronized but battery operated. With the
lithium option  the MSB can handle temperatures down to-40C.  It operates on an internal battery but will turn ON/OFF
with the equipment in accordance with the power signal from the relay box.














A refillable electromechanical unitTL-MEX  is configured for hazardous areas with UL certification  and  more as a non-incendive,  explosion proof  product.
Welcome.

New - TL-PLC with remote access control of lubrication dispense times, quantity and                  duration. More information on the PLC page.
           - Canadian made TL-MPX 1000cc for heavier lubrication needs, for single point or                 up to 48.  Hazardous location or normal location units as needed.  User refillable.                 More information on the MPX page.

       Mightyluber 1000cc
   with grease or oil options,
powered by alkaline or
lithium batteries , or
external power with adapter
